DAS SOLAR 440W BIFACIAL DOUBLE GLASS N TYPE MODULE
DAS SOLAR 440W BIFACIAL DOUBLE GLASS N TYPE MODULE
Leading module efficiency in industry, up to 22.3%
Bifacial solar cell, symmetrical design, low risk of micro-crack
25 years materials warranty, 30 years power warranty
Bifacialiy is up to 80%, up to 30% more energy yield than conventional modules
Higher power output under low irradiance environments like on cloudy or foggy days
More extensive application scenes, such as BIPV, snow field, vertical installation, high humidity, strong wind and desert region
Mechanical Parameters
Cell Type
N Type

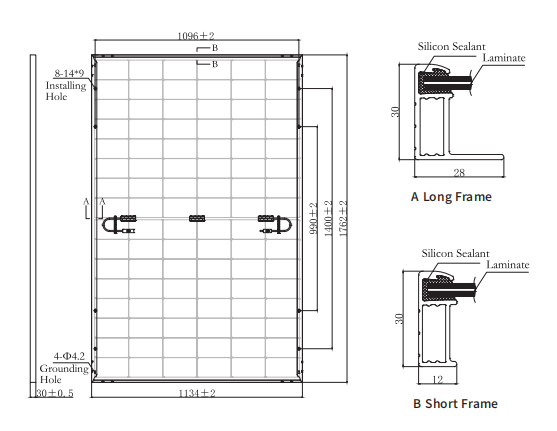

Module Size
1762×1134×30mm
Glass Thickness
1.6mm+1.6mm
Module Weight
21.0Kg
Output Cable
4mm², cable length 1200mm (can be customized)
Connector
Original MC4 Series
Junction Box
IP68, 3 bypass diodes
Frame
Anodized aluminium alloy (Black)
